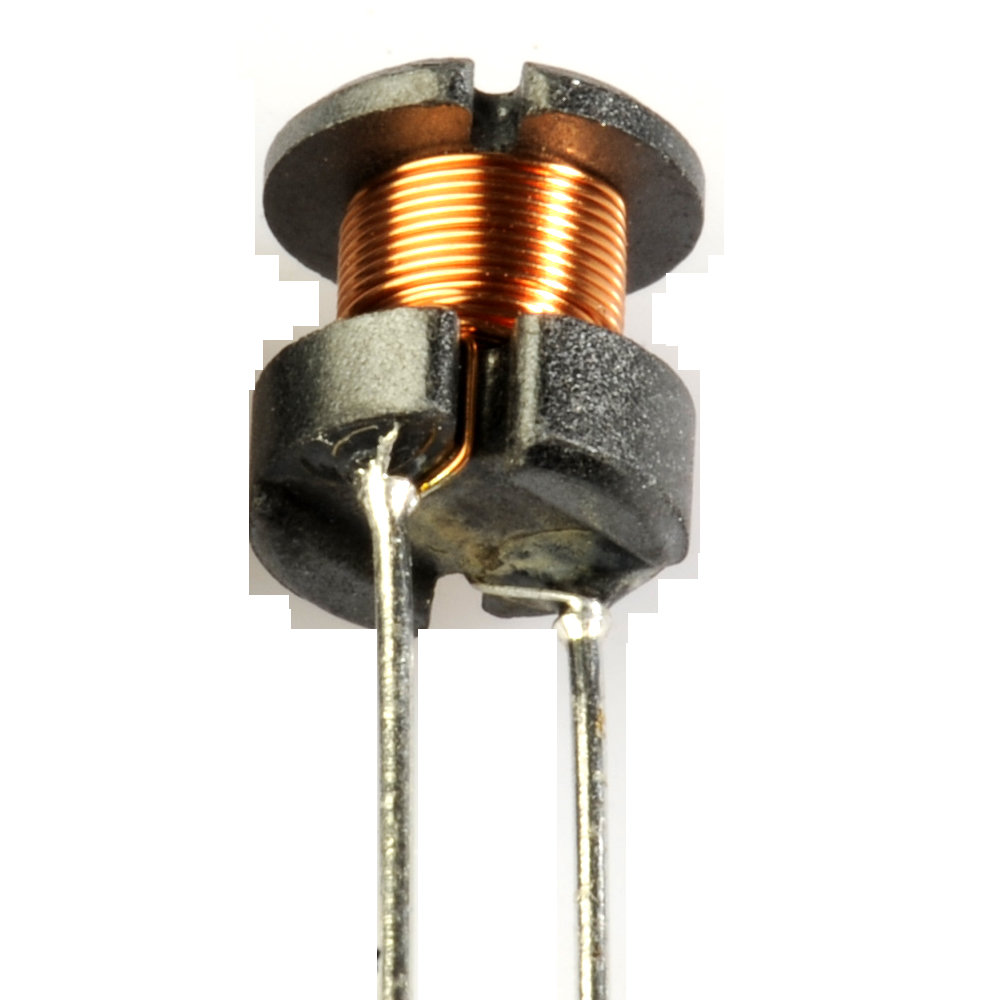

Ferrite DIP Type
Low DC resistance and high current handling
capacities, making them ideal for power supply line applications.
Ferrite DIP Type
capacities, making them ideal for power supply line applications.
| Product Number | Dimensions(mm) | Inductance Range(uH) | Rdc Range(Ω) | Rated Current(A) | |
|
7.8x6.5 | 10~10mH | 70m~55.7 | 0.081~2.5 | |
|
7.8x8.0 | 3.3~10mH | 14m~33 | 0.084~6.2 | |
|
7.8x9.5 | 10~47mH | 40m~96.4 | 0.038~2.7 | |
|
10.0x10.5 | 10~1000 | 22m~1.7 | 0.53~5.3 | |
|
7.8x8.5 | 2.2~1500 | 16m~4.5 | 0.18~7.0 | |
|
10.0x9.5 | 10~4700 | 44m~14.8 | 0.25~4.0 | |
|
10.5x10.5 | 1.2~2200 | 7.7m~3.9 | 0.27~15 | |
|
11.0x12.5 | 22~1000 | 50m~1.70 | 0.53~4.5 | |
|
12.0x12.5 | 4.7~1000 | 15m~1.50 | 0.65~9.0 | |
|
15.0x16.5 | 10~4000 | 19m~3.73 | 0.49~10.0 | |
|
16.5x15.5 | 10~1000 | 17m~0.75 | 1.4~14.0 | |
|
19.0x18.5 | 22~1000 | 25m~0.73 | 2.5~14.0 | |
|
5.0x7.0 | 1.0~5600 | 0.0126~32 | 0.07~5.2 | |
|
5.5x8.0 | 1.0~5600 | 0.0126~32 | 0.07~5.2 | |
|
7.8x8.5 | 1.0~3300 | 0.0115~10.8 | 0.09~8.0 | |
|
8.0x10.0 | 1.0~4700 | 0.0115~18.5 | 0.07~8.0 | |
|
10.0x9.5 | 1.0~4700 | 0.0105~14.8 | 0.25~11.0 | |
|
10.0x10.5 | 1.0~4700 | 0.0105~14.8 | 0.25~11.0 | |
|
10.5x12.5 | 1.0~8400 | 0.0066~19 | 0.18~18.0 | |
|
10.5x12.5 | 1.0~47000 | 0.0066~100 | 0.06~18.0 | |
|
11x12.5 | 2.2~820 | 0.0095~1.3 | 0.59~7.0 | |
|
11.5x14.5 | 10~8400 | 0.028~13.6 | 0.14~6.5 | |
|
12.0x12.5 | 1.4~4700 | 0.0048~6.4 | 0.32~17.0 | |
|
13.0x14.5 | 1.4~4700 | 0.0048~6.4 | 0.32~17.0 |
